| Brand Name : | None |
| Model Number : | FW08 |
| Certification : | CE, ISO9001: 2000, EPA, SGS/Euro 5 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 5-8 days |
| MOQ : | 1PCS |

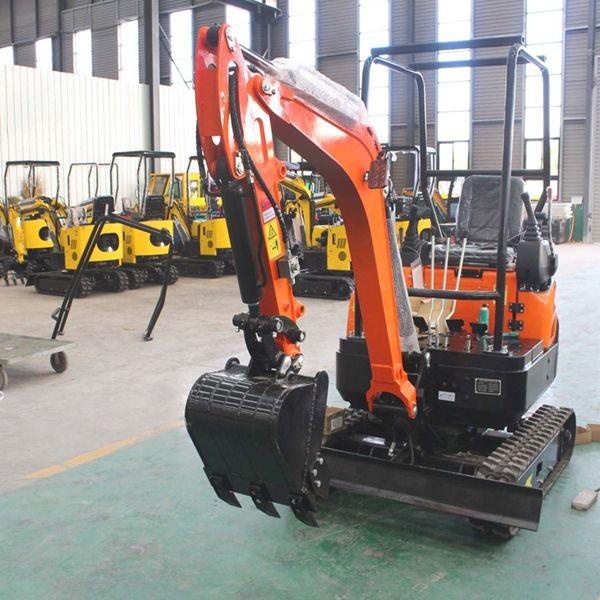

FREE SHIPPING CE/EPA/EURO 5 Wholesale Compact Mini Small Crawler Excavator
Our excavator is an ideal machine for any construction, demolition, or excavation job. It boasts exceptional performance, advanced technology, comfort, safety, and easy maintenance. Contact us today to learn more about how our excavator can help you take on even the toughest of construction challenges.
Our excavator is designed to handle the most demanding excavation, construction, and demolition tasks with ease. It has been built to the highest standards of quality, reliability, and performance.
The excavator features an advanced hydraulic system that delivers excellent digging force and speed. It is designed for maximum efficiency and precision, making it easy for operators to navigate and manipulate the machine with ease. With its robust design, the excavator can move large amounts of material quickly and efficiently.
| Preformance Parameter FW08A | |
| Rated Power | 7kw-7.5kw |
| Bucket Capacity | 0.025m³ |
| Bucket Width | 300mm |
| Engine Model | Koop192f |
| Optional Engine | Briggs&Stratton |
| Opeating Weight | 800kg |
| Pump Form | Single Gear Pump |
| Set Working Pressure | 14Mpa |
| Swing Speed | 12rpm |
| Travel Speed | 2.2Km/h |
| Gradeability | 30° |
| Ground Pressure | 19Kpa |
| Max. Digging Force | 7.5Kn |
| Dimensions | |
| Total Width | 720-780mm |
| Total Height | 1300mm |
| Total Length | 2430mm |
| Min.Ground Clearance | 80mm |
| Track Ground Length | 1140mm |
| Track Width | 150mm |
| Working Range | |
| Max.Digging Distance | 2450mm |
| Max.Digging Depth | 1200mm |
| Max.Digging Height | 2350mm |
| Max.Dumping Height | 1600mm |
| Min. Swing Radius | 1100mm |
| Max. upgrade Height of Bulldozer Blade | 120mm |
| Max.Digging Depth of Bulldozer Blade | 200mm |
|
|
