    Euro5 EPA Crawler Mini Loader Machine Rated Operating Capacity 400KG

    Ask Lasest Price
    Brand Name : None
    Model Number : FY700
    Certification : CE/ISO9001:2000/EPA/Euro/SGS
    Payment Terms : L/C, T/T
    Supply Ability : 5000 units/year
    Delivery Time : 3-7 business days
    • Product Details
    • Company Profile

    Euro5 EPA Crawler Mini Loader Machine Rated Operating Capacity 400KG

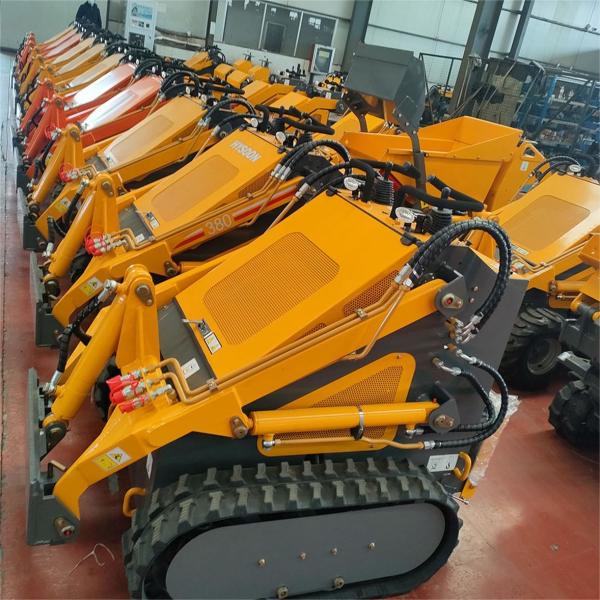

    Euro5 EPA Mini Skid Crawler and Wheel Steer Loader Rated Operating Capacity 400KG


    Quick Detail:

    * Engine We use Briggs&Stratton/KOOP/LONCIN/RATO, Double-cylinder. The engine has a displacement of 639cc, which means that the it has a larger bore and stroke, so it has a larger displacement and more power.

    * Valve ltaly Wolff multi-way valve. The spool comes with a buffer function, making the action more flexible.

    * Pump American Permco high-pressure gear pump. Good quality with strong performance.

    * Motor American Danfoss slewing support motor. Small size, light weight, high efficiency and long service life.

    * Flow Control Valve It is convenient for the machine to use the different attachments and exert greater work efficiency.

    * Rated Operating Capacity 400KG


    Specifications:

    MODELFY700
    EngineBriggs&Stratton/KOOP/LONCIN/RATO, double-cylinder
    Rated Power15- 18KW/3600rpm
    Engine IntakeNaturally Aspirated
    Displacement639cc
    Loading Capacity300KG
    Operating Load400KG
    Operating Weight1200KG
    Ground Pressure17-21bar
    Travel Speed6km/h
    Fuel Tank Capacity25L
    Displacement639cc
    Tyre18/20
    Bucket Capacity0. 12m3
    Bucket Width1100mm
    Overall Dimension2206* 1080* 1350mm
    Length without Bucket1560mm
    Max.Operating Height2450mm
    Height to Bucket Hinge Pin1870mm
    Width with Bucket1740mm
    Rollback of Bucket on Ground27.
    Rollback of Bucket at Full Height114.
    Wheelbase850mm
    Tread Width720mm
    Ground Clearance150mm
    Rear Axle to Bumper280mm
    Dumping Angle34°
    Dumping Height1510mm
    Dumping Reach450mm

    Applications:

    The scope of application is wider, and it can be applied to specific construction environments. Skid steer loaders can be used in occasions where the site is small, the ground is undulating, and the operation content changes frequently, such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, Ship decks and even cabins, etc.


    FAQ
    Q1: Are you an original manufacturer?
    We are a professional manufacture. We have our own R&D team and sales team, we provide one-stop service.

    Q2: What about the warranty time?
    1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. And we also provide after-sales service support and agricultural technical support

    Q3: What engine you can offer?
    Optional Yanmar, Kubota, Brrigs&Sttraton engine,
    Optional US EPA & Euro stage V engine

    Q4: How can we ensure quality?
    We have quality control sysmterm and also double check supervise team,
    The final inspection is always carried out before shipment

    Q5: What is your production time or delivery time?
    Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days,It depend on the order quantity.

    Q6: What is your payment term?
    Normally we can worked on T/T and support 30% payment in advanced and the other balance 70% can be paid against COPY B/L.

    Q7: Do you support Customized service?
    Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.

    Q8: Do you offer the accessories ?
    Yes, we have many kinds of accessories for your choice and make the mini excavator in a wide usage and more effective.

    Q9: How do you pack the machine if buy one unit?
    Usually we pack the whole machine with the strong wooden crate.

    Q10: What is your MOQ?
    We support th small order and our MOQ is 1 unit
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


    Company Brief Introduction:

    You will become a Big Winner!

    Our main hot products include Excavators, Mini Skid Steer Loader,Mini Excavators, Electric Excavators, Electric Forklifts, Road Rollers, Scissor elevator, forklift and electric forklift together with other machinery fields. Through these products, our Mini Excavators sell pretty hot! Like 0.8T, 1.0T, 1.2T, 1.6T, 1.7T, 1.8T, 2.0T, 3.0T, 4T, 5T, 6T, 10T, 20T, 30T Excavators really win customer’s good likes!
    And Also Scissor elevator, like 6 meter, 10 meter, 12 meter really hot as well.
    All Products have obtained ISO9001, CE, SGS, EPA and TUV Certificated.
